VLS252012HBX-2R2M-1
Manufacturer:
TDK Corporation
Mfr.Part #:
VLS252012HBX-2R2M-1
Datasheet:
Description:

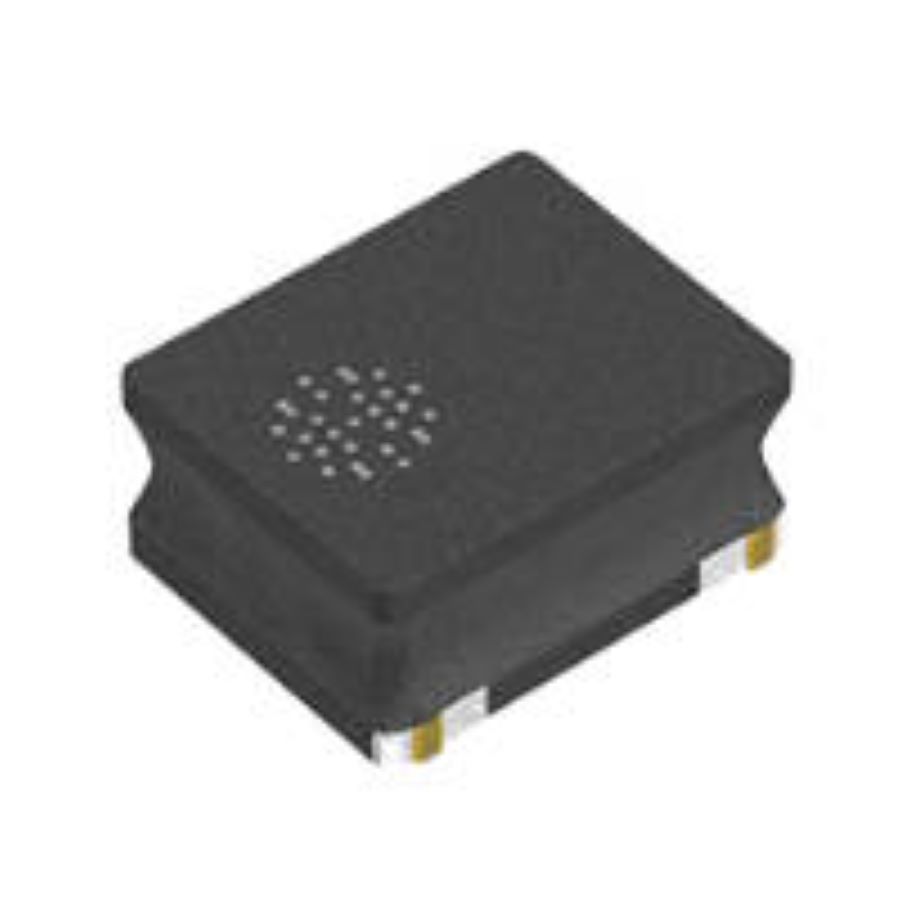

Fixed Inductors 1008(2520 Metric) SMD/SMT 2.2 µH 20 % 2.3 A 102 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.2 mm |
| Length | 2.4892 mm |
| Width | 2.0066 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Composition(Kit Type) | Wirewound |
| REACH SVHC | No SVHC |
| Current Rating | 2.3 A |
| DC Resistance (DCR) | 102 mΩ |
| Test Frequency | 1 MHz |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Metal |
| RMS Current (Irms) | 2.4 A |
| inductance tolerance | 20 % |
| Saturation Current | 2.04 A |
| Schedule B | 8504500000 |
| RoHS | Compliant |
| Packaging | Reel |
| Height | 1.8 mm |
| Type | Wirewound |
Stock: 1576
Distributors
pcbx
pcbxUnit Price$0.11040
Ext.Price$0.11040
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11040 | $0.11040 |
| 10 | $0.05520 | $0.55200 |
| 50 | $0.04903 | $2.45150 |
| 100 | $0.04355 | $4.35500 |
| 500 | $0.03979 | $19.89500 |
| 1000 | $0.03636 | $36.36000 |
| 3000 | $0.03322 | $99.66000 |
| 5000 | $0.03035 | $151.75000 |
| 10000 | $0.02773 | $277.30000 |
